QD-3110A Outdoor portable power bank

QD-3110A outdoor mobile power supply is a high-efficiency and high-capacity micro energy storage power supply. A conversion device that uses new lithium battery technology to convert the electrical energy of mains and lithium batteries into uninterrupted and purified AC power. It can provide reliable AC power supply for precision instruments and electrical tools and equipment, in case of power outages or outdoor areas without electricity.

The outdoor mobile power bank also has remote monitoring function, which can use remote platform data to view the working condition information of the power supply.

Environment Condition

Equipment composition and technical characteristics

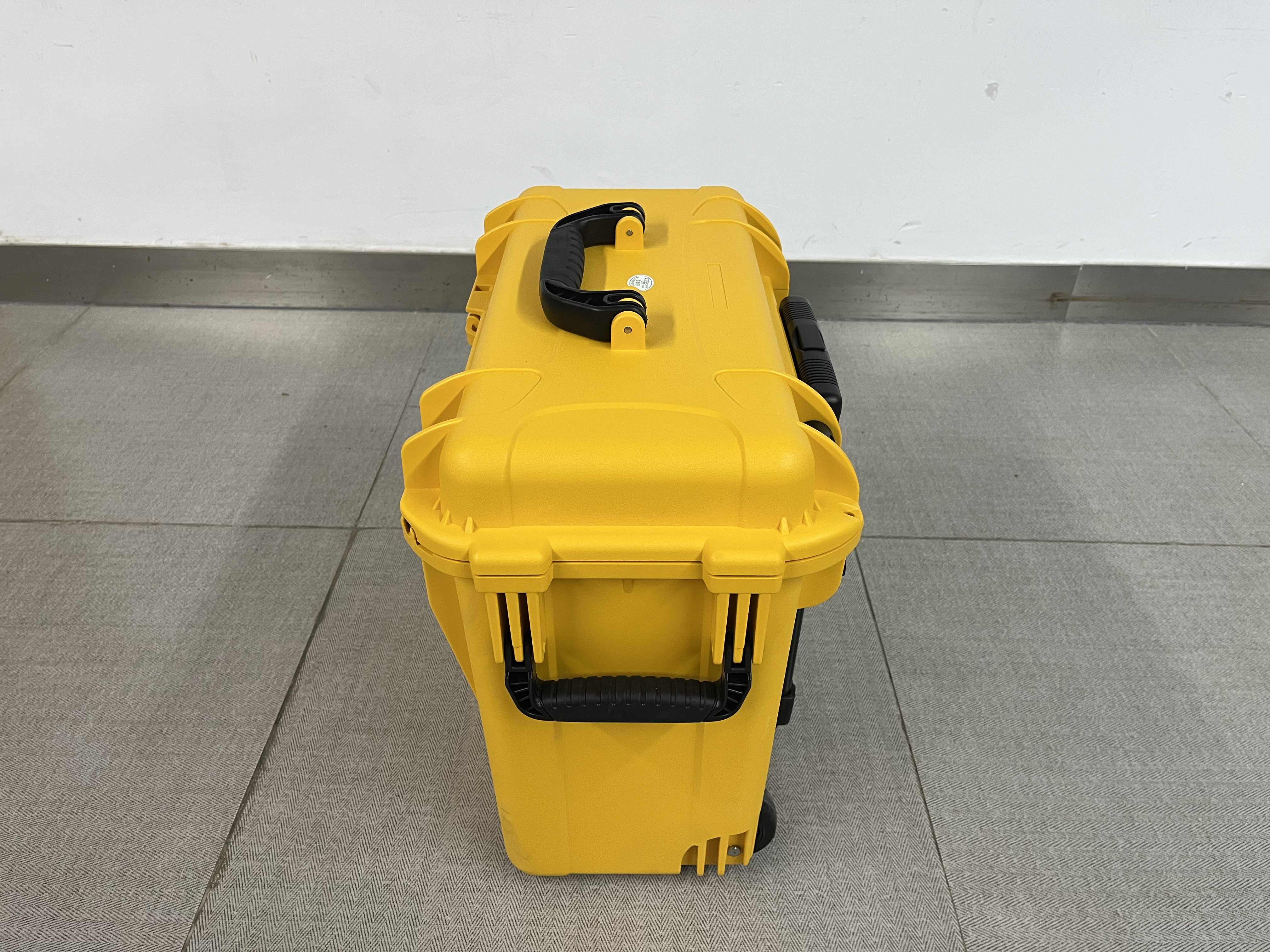

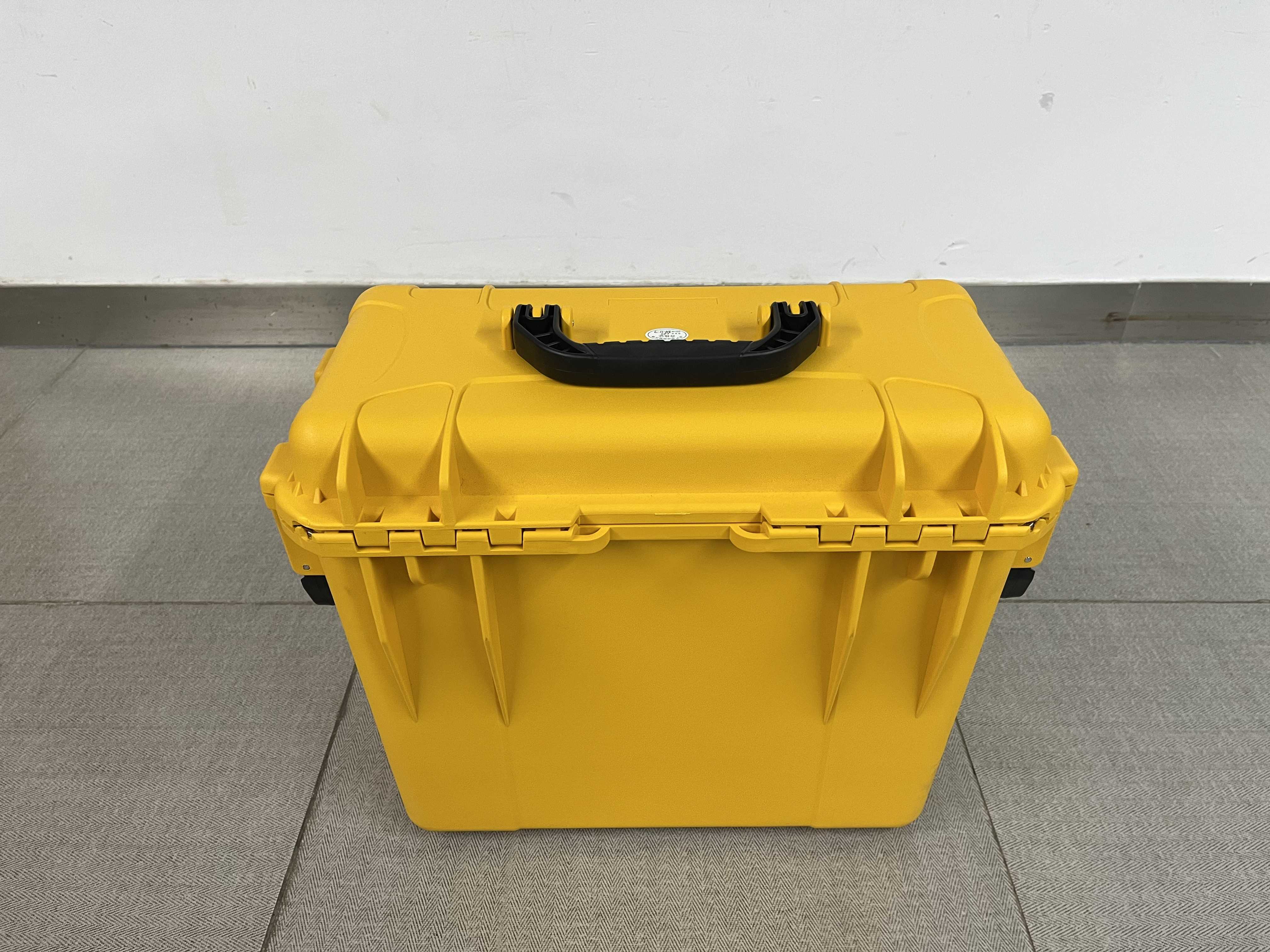

   ★The chassis shell is a military plastic chassis, waterproof, earthquake resistant, and pressure resistant

   ★The battery uses lithium cells, with a charge and discharge cycle of over 3000 times

   ★The battery pack adopts BMS battery management system, which can monitor the voltage, current, and temperature of each battery cell; Equipped with automatic balancing function, automatic power-off protection in case of abnormality

   ★Stable and safe, completely eliminating situations such as battery cell explosion, combustion, bulging, and leakage that may cause injury

   ★Wide working environment temperature range (-20-60 ℃), strong cold resistance

   ★The weight of the battery is about one-third of that of a lead-acid valve regulated battery with the same voltage level and capacity

   ★The host DC/AC and DC/DC power supplies use intelligent IC control units, high-quality circuit boards, and imported components to ensure product quality

★ Output stable AC110V voltage, output power 0-3000W  ;

   ★ Strong load-bearing capacity

   ★ Equipped with built-in battery display function

   ★ Equipped with comprehensive overcurrent, overvoltage, overload, and overheat protection, high reliability

   ★ Capable of platform data monitoring

Equipment Technical Parameters

Equipment usage instructions

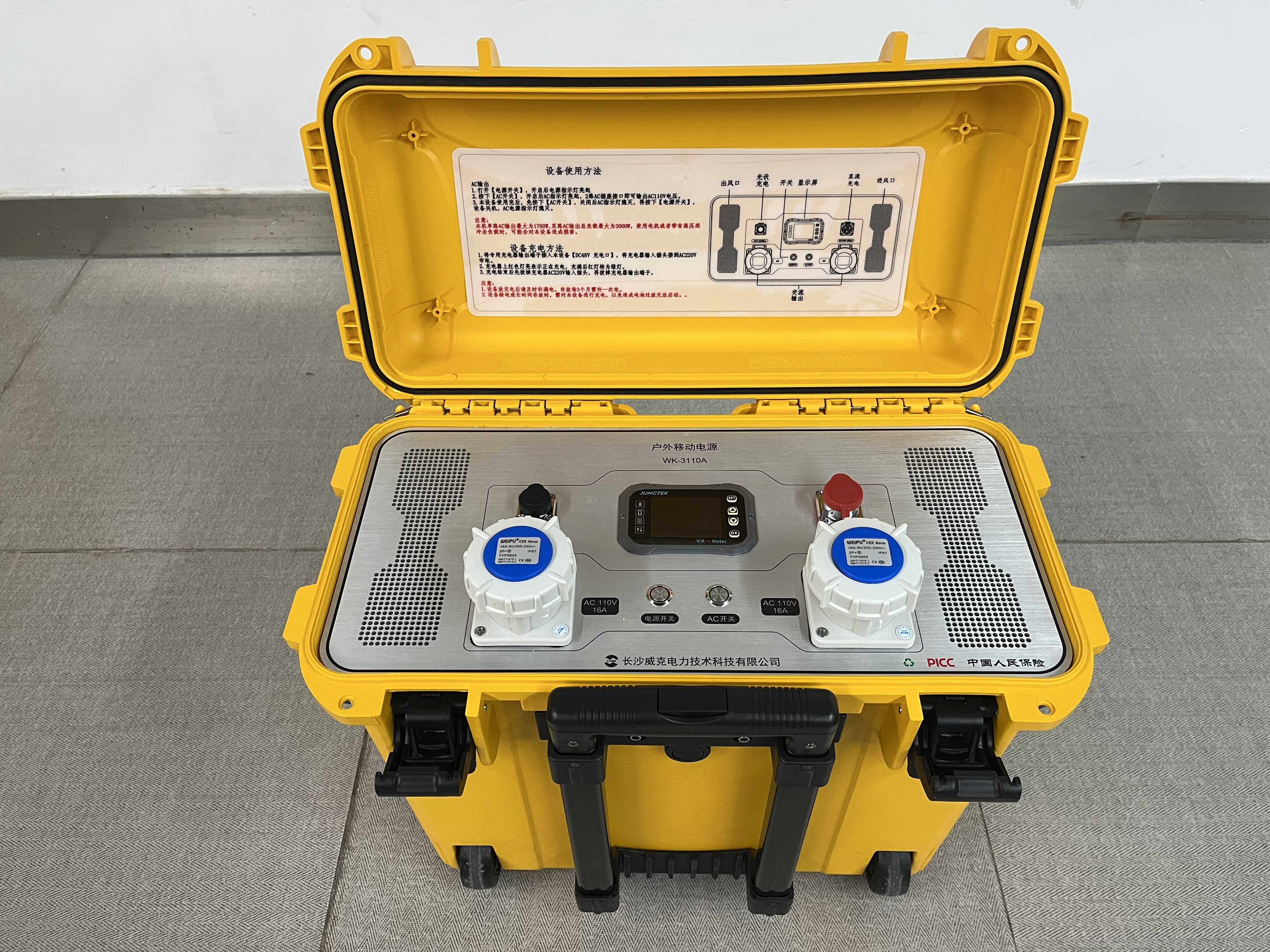

Power on/off steps

    1.Turn on the power switch, and the power indicator light will turn on when turned on.

2.Press the AC switch to turn on the AC indicator light, and the 2-channel AC socket interface can output AC110V/50Hz voltage.

3.After using this device, first press the [AC switch] to turn off the AC indicator light. Then press the [power switch] to turn off the device and turn off the power indicator light.

Attention: The maximum load of a single AC socket on this device is 3000W. Using a motor or carrying high-voltage impact loads may cause damage to this equipment.

Charging steps

    1.Connect the output terminal of the dedicated charger to the DC48V charging port of this device, and connect the input plug of the charger to the AC220V mains power.

2.The red light on the charger indicates that it is charging, and when fully charged, the red light will turn to green. (Charging time is about 3-4 hours)

3.After charging, first unplug the AC220V input plug of the charger, and then unplug the output terminal of the charger.

Attention：

    1.After the equipment is discharged, please recharge it in a timely manner. It needs to be recharged every 3 months when stored.

    2.When the device is out of power or stored for a long time, it is necessary to charge the device to avoid over discharging the battery and preventing it from starting.

After sales service commitment:

This device is guaranteed for 1 year, with long-term maintenance and provision of spare parts. The software is upgraded for free for life.
